Long-Term Operation Stability
Sophisticated parts for machine,say no to substandard products
Power-on and ready-to-use, zeromaintenance cost
Self-developed software ensuresstable performance without any faults
Born For Efficiency
Draw line speed up to 12000mm/s
Standard and customizedcommunication protocols
High performance self-developedsmart chip set can quickly process huge data and complex graphics.
Smart touch screen panel
System operation is easy to use
Support various languages,one-button marking
Light-weightedbody made of high-density materials
High-transmittedfused silica field lens ensures high stability
Variousworking distances are available to adapt to all kinds of productionenvironments, making production line integration more flexible

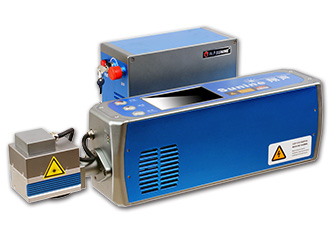

Sealed-Off CO2 Laser, approx. 45,000 hours MTBF
High-precision 2-dimensional scanning
7 inch touch screen (built-in) ( 10 inch hand held terminal for option)
Air cooling system
Type of marking line
Dot martix and vector format
Standard：90mm×90mm，optional max to 450mm x450mm
Red light positioning, auto focus
Lines of marking
No limit within marking field
0~189m/min （it depends on material and marking content）
English, Chinese, Spanish, Russian, Korean, Arabian etc.
Bar code / QR code
CODE39/CODE128/code126/QR code/Z-code/DM code/Visual code, etc
10.6µm wavelength getswell absorbed in applications that process materials ranging from thin paper tocardboard packaging. Extremely good print results are also achieved on glassproducts. This wavelength is the most common one available with CO2 lasers and perfectly suits themajority of packaging applications.
10.2µm wavelength isideally suited to marking on thin films and any types of packaging foils. Bestresults can be expected on painted films and foils with a thin ink layer ontop. Packaging materials which absorb this wavelength very well and thereforegenerate the best CO2-Laser print quality are PE, HDPE,LDPE, PP, OPP, OPA, PA, PMMA, POM, PUR, ABS and PVC.

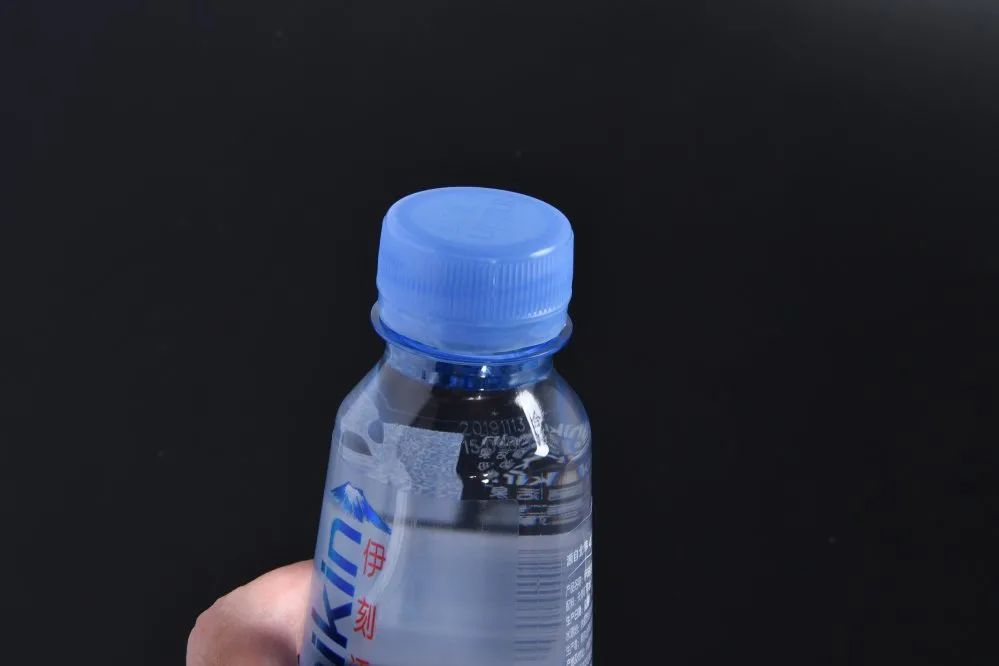

9.3µm wavelength perfectlymatches for the head absorption of plastics like PET (PolyethyleneTerephthalate), allows marking on plastic surfaces by smoothly melting thesurface layer without creating pinholes or cracking the inner structure. Thisis the ideal solution for the family of polyesters of thermoplastic resins. PETis wide-spreading in the beverage industry and is mostly used for producingbottles.
