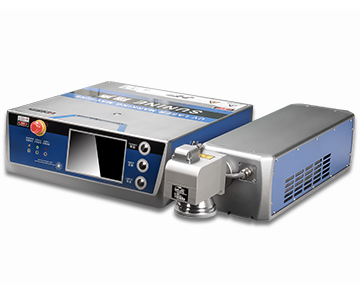

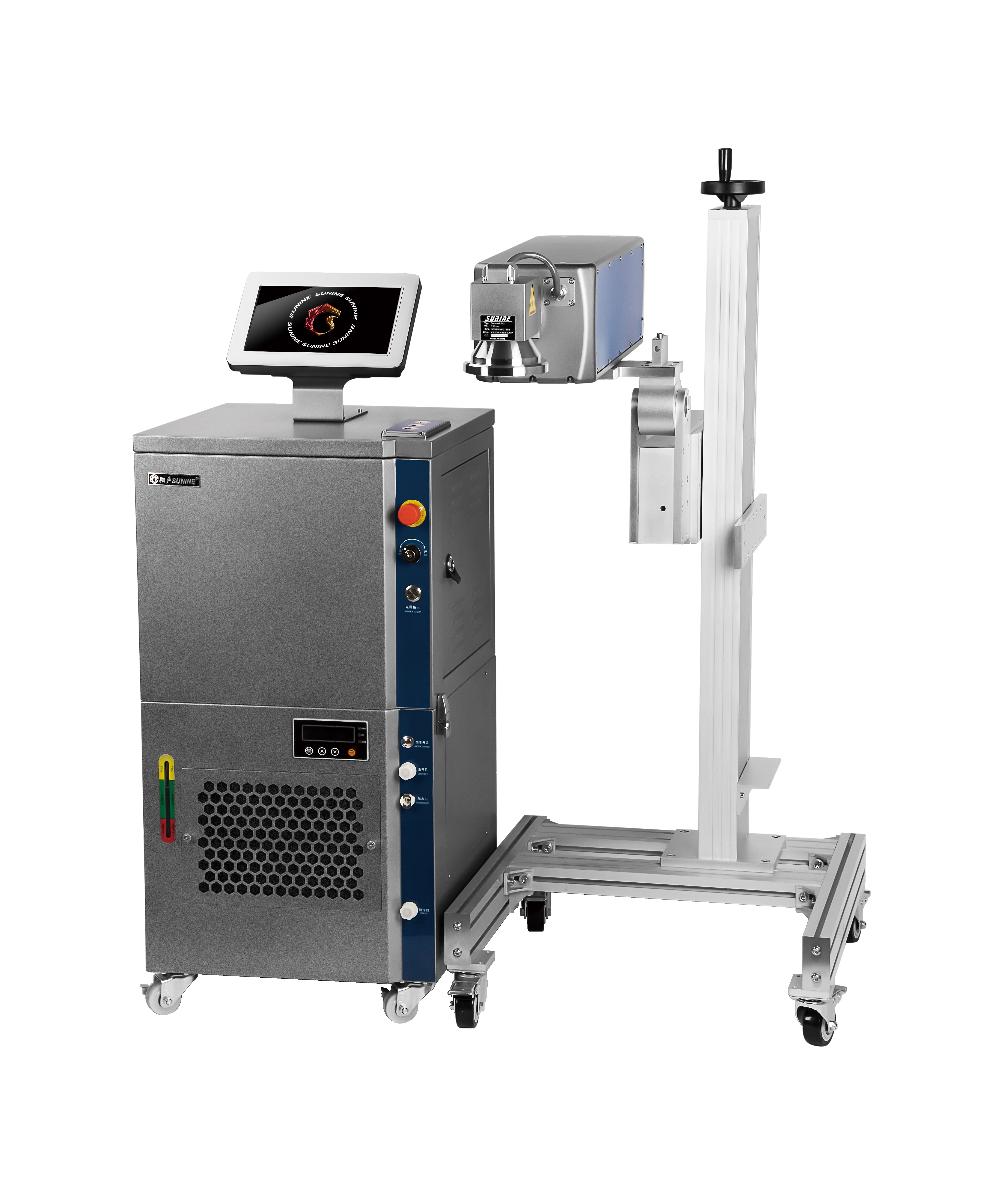

UV300c UV500c UV1000c UV Date Batch Coding Machinery

QR code
HIGH-CONTRAST AND DAMAGE-FREE
UV laser has a higher absorption rate for materials than fiberlaser (wavelength 1064nm) and green laser (wavelength 532nm) have. The laser beam can be efficiently absorbed by the surface of the marked materials, which protects the materials from damag and delivers high quality marking effects. Even for materials with high reflectivity like gold, silver and copper, the absorption rate is still high without heat of reaction. UV lasers don't produce particles or damage the mate- rials' surface, so it can be also applied for materials with corrosion resistance.
Type UV
Brand SUNINE
Model UV1010c
Power 10W
Weight 41KG
Wavelength 355nm
Operation System Linux
Laser Type UV laser source
marking field Standard 110mmX110mm maximum optional: 600mmX600mm
Consult immediately
DetailSpecificationsApplications

Long-Term Operation Stability

  • Sophisticated parts for machine,say no to substandard products

  • Power-on and ready-to-use, zeromaintenance cost

  • Self-developed software ensuresstable performance without any faults


Born For Efficiency

  • Draw line speed up to 12000mm/s

  • Standard and customizedcommunication protocols

  • High performance self-developedsmart chip set can quickly process huge data and complex graphics.



Easy-To-Operate

  • Smart touch screen panel

  • System operation is easy to use

  • Support various languages,one-button marking


Capabilityof Integration

  • Light-weightedbody made of high-density materials

  • High-transmittedfused silica field lens ensures high stability

  • Variousworking distances are available to adapt to all kinds of productionenvironments, making production line integration more flexible

    UV-CE certificate.jpg










Model

UV300C

UV500C

UV1000C

Power

3W

5W

10W

Case materials

Anodized Aluminum (Laser Head) & Stainless Steel (Control Unit)

Laser type

UV laser source

Laser wavelength

355nm

Marking method

High-precision 2D scanning

Marking speed

≤18000mm/s

Main control

Highly-integrated motherboard with 10 inch touch screen controller, V5 operation system

Cooling method

Water-cooled

Operation system

Linux

Type of marking

Both Dot martix & vector

Reflector size

Standard: 8.5mm

Marking filed

Standard: 110mmX110mm maximum optional:600mmX600mm

Positioning method

Red light positioning, auto focus

Number of lines

No limits within marking filed

Production line speed

0-300/min(varies according to materials and printing contents)

Language

English, Chinese, Spanish, Russian, Korean, Arabian etc.

File format

BMP/DXF/HPGLIJPEG/PLT

Bar code /QR code

CODE39/CODE128/code126/QRcode/Z-code/DM codeNisual code.etc

Power supply

220V/110V

Max consumption

900W

1000W

Weight

39kg(US laser source)

41kg(Chinese laser source)

Laser head size

US laser source: 676mmX178mmX170mm

Chinese laser source : 702mmX209mmX155mm

Control unit size

403mmX383mmX160mm

Interfaces

RS-232C/USB2 0/Ethernet.l/O

Casing protection level

IP54(laser head, IP65 is an option )

Working condition

5 to 40℃; ≤85RH(No-condensing)



355 nm wavelength of UV laser marker allowmarking and processing to be performed with minimal heat stress. Materialswhich absorb this wavelength very well and therefore generate the best Laserprint quality are PE, HDPE, LDPE, PP, ABS and PVC.
