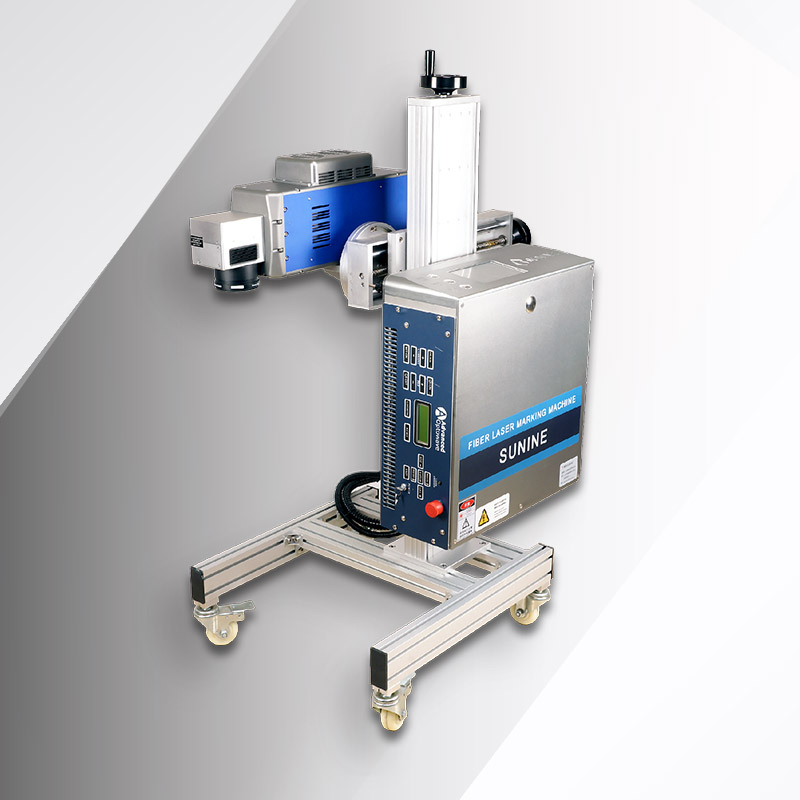

Sunine UV300fc/UV500fc 3W 5W UV Laser Marking Machine

QR code
The UV300fc / UV500fc 3W-5W UV laser marking machine is designed for ultra-fine marking, offering high-speed on-the-fly marking on PE, HDPE, LDPE, PP, ABS, and PVC materials. With a highly absorbent wavelength of 355 nm.
Brand SUNINE
Model UV300fc
Power 3W
Weight 40KG
Wavelength 355nm
Operation System Linux
Laser Type UV laser source
marking field Standard 110mmX110mm maximum optional: 600mmX600mm
Consult immediately
DetailSpecificationsApplications


Stability & Maintenance Free

3W UV laser marking requires no consumables, no downtime associated with cleaning or repairs, and the printing process is quick and straightforward.

  • Sophistic and parts for machine

  • Power-on and ready-to-use, zero maintenance cost

  • Self-developed software ensures performance



High-Efficiency

3W UV lasers are better absorbed than other wavelengths and marking techniques by virtually all materials, requiring less power to produce a clear mark in one application with high-quality and high-contrast results.

  • marking   speed up to 12000mm/s

  • Standard and communication protocols

  • A high-performance, self-developed intelligent chipset can quickly process vast amounts of data and complex graphics.


High-Performance

UV laser printers create easy-to-read marks far superior to printed marks or labels. 3W UV laser ensures crisp, high-contrast permanent marking thanks to the small beam size.

  • High-contrast permanent marking

  • Minimal heat damage

  • Corrosion-resistant marking

Long-Term Operation Stability

  • Sophisticated parts for machine,say no to substandard products

  • Power-on and ready-to-use, zeromaintenance cost

  • Self-developed software ensuresstable performance without any faults


Born For Efficiency

  • Draw line speed up to 12000mm/s

  • Standard and customizedcommunication protocols

  • High performance self-developedsmart chip set can quickly process huge data and complex graphics.



Easy-To-Operate

  • Smart touch screen panel

  • System operation is easy to use

  • Support various languages,one-button marking

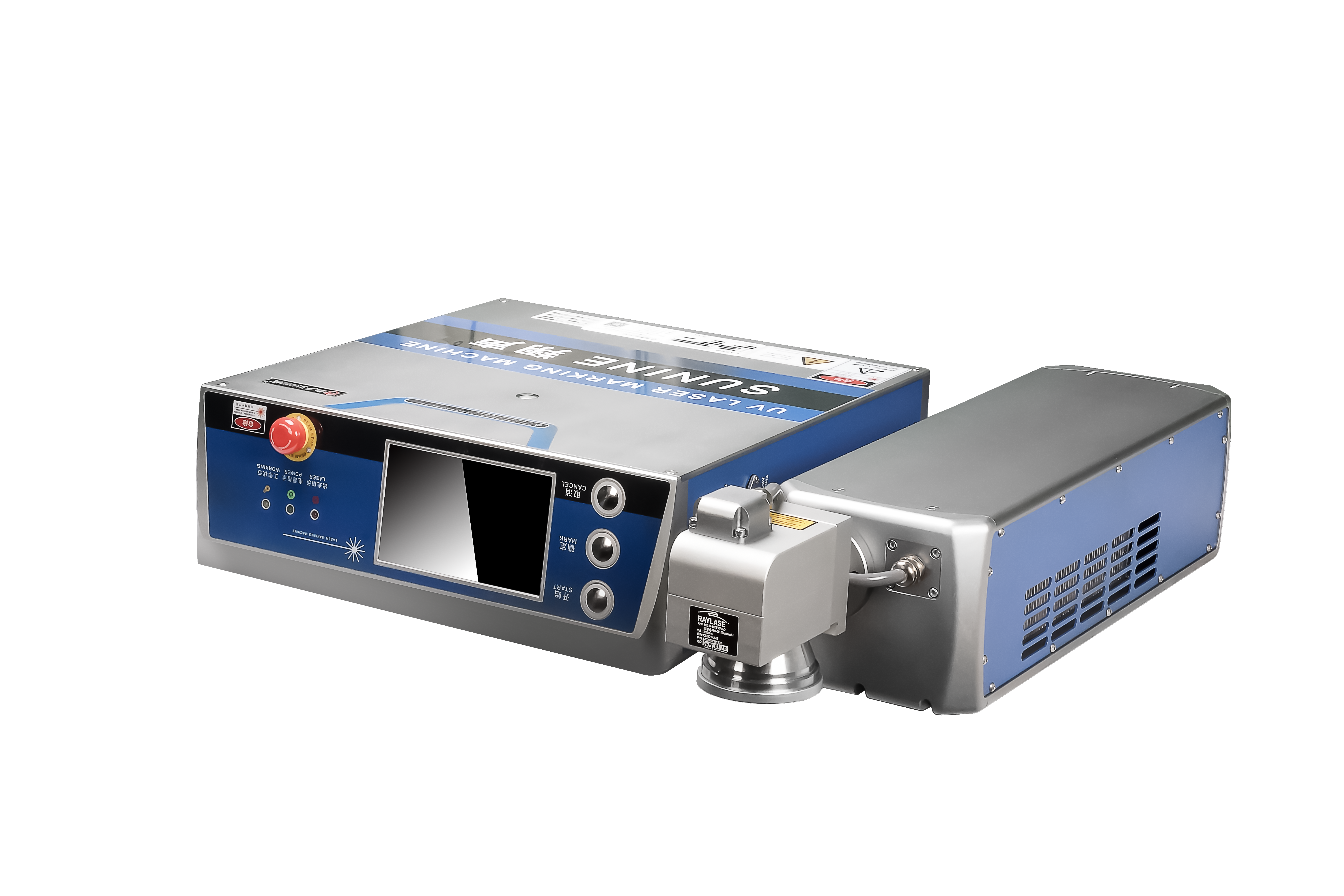

3W UV laser printer.jpg


Capabilityof Integration

  • Light-weightedbody made of high-density materials

  • High-transmittedfused silica field lens ensures high stability

  • Variousworking distances are available to adapt to all kinds of productionenvironments, making production line integration more flexible

    UV-CE certificate.jpg

Made of imported quartz material, the transmittance is greater than 97%, the loss is very small, ae nd thlaser energy is maximized.

Field lens.png










Model

UV300fc

UV500fc

UV310c

Power

3W

5W

3W

Case materials

Anodized Aluminum (Laser Head) & Stainless Steel (Control Unit)

Laser type

UV laser source

Laser wavelength

355nm

Marking method

High-precision 2D scanning

Marking speed

≤12000mm/s

Main control

Highly-integrated motherboard with 10 inch touch screen controller, V5 operation system

Cooling method

Air-cooled

Water-cooled

Operation system

Linux

Type of marking

Both Dot martix & vector

Reflector size

Standard: 8.5mm

Marking filed

Standard: 110mmX110mm maximum optional:600mmX600mm

Positioning method

Red light positioning, auto focus

Number of lines

No limits within marking filed

Production line speed

0-300/min(varies according to materials and printing contents)

Language

English, Chinese, Spanish, Russian, Korean, Arabian etc.

File format

BMP/DXF/HPGLIJPEG/PLT

Bar code /QR code

CODE39/CODE128/code126/QRcode/Z-code/DM codeNisual code.etc

Power supply

220V

Max cosumption

≤400W

≤900W

Weight

40Kg

39Kg

Laser head size

676mm X 178mm X 170mm

US laser source:676mm X 178mm X 170mm

Chinese laser source: 702mmX209mmX155mm

Control unit size

403mmX383mmX160mm

Interfaces

RS-232C/USB2 0/Ethernet.l/O

Casing protection level

IP54(laser head, IP65 is an option )

Working condition

5 to 40℃; ≤85RH(No-condensing)

0to40℃;≤85RH(No-condensing)






wide application:

355 nm wavelength of UV laser marker allowmarking and processing to be performed with minimal heat stress. Materialswhich absorb this wavelength very well and therefore generate the best Laserprint quality are PE, HDPE, LDPE, PP, ABS and PVC.



20220312


suitable for various materials:

various laser types, different marking effects

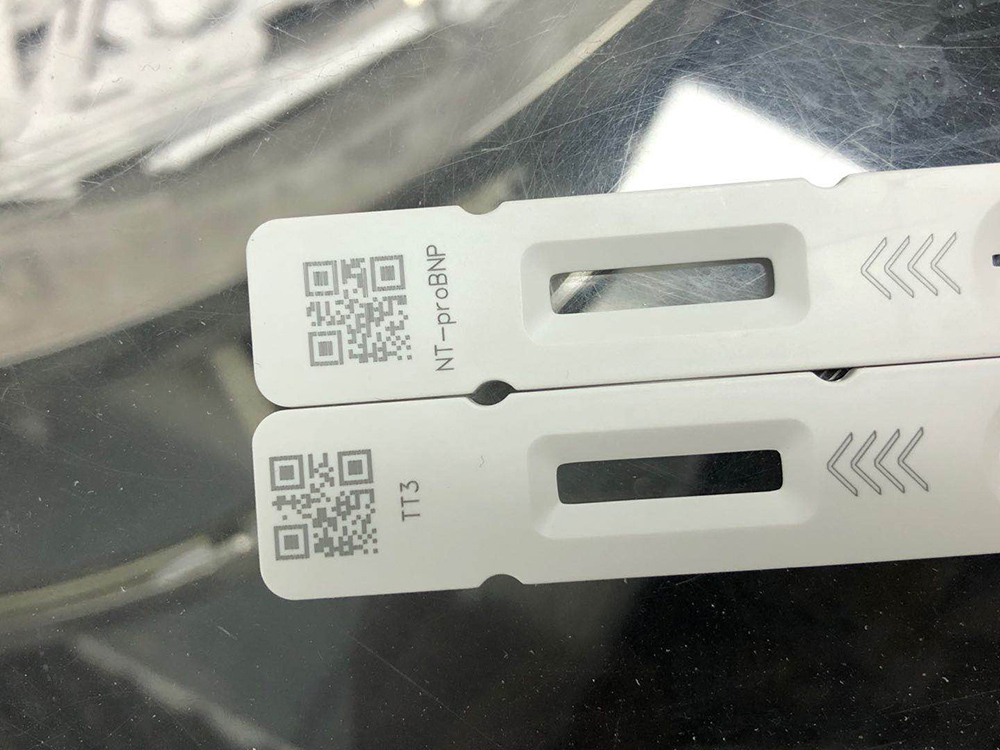

UV laser marking sample .jpg
