Sunine LD20iII/LD20iII-B LD30iII/LD30iII-B LD50iII/LD50iII-B second generation handled laser printer

QR code
Type FIBER
Brand SUNINE
Model LD20i
Power 20W
Weight 8.3KG
Wavelength 1064nm
Operation System Linux
Laser Type fiber laser source
marking field 50mmX50mm or 100mmX100mm(optional)
Consult immediately
DetailSpecificationsApplications

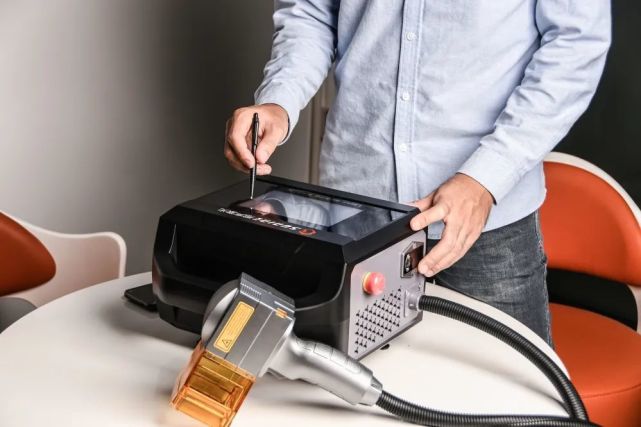

LD Series 2nd second generation is finally lauched. With a brand-new design, LD II Series is much lighter than the 1st generation. Built-in high-speed galvanometer scanner in small size, it has features of fast speed and accurate positioning.Long lifetime and maintenance-free, this hand-held laser marking machine is the industry’s most complete handheld fiber laser marking and engraving system, can mark both metals and non-metallic materials well.

Features:

- Fiber beam delivery with integrated optical isolator

- Support TCP/IP protocols

- Extremely lightweight and equipped with a handle for increased portability

- 50mm x 50mm and 100mm x 100mm marking area for option

- Compact design, easy to move, only 9KG weight (battery type 9.8KG)

- Built in touch screen display for easier operation

- Air cooled, no need for a water chiller unit

- Power consumption is significantly less

- NO maintenance, no consumables



LD II-1.PNGLD II-2.PNGLD II-3.PNGLD II-4.PNGLD II-5.PNGLD II-6.PNG

Specification

LD20iⅡ

LD30i Ⅱ

LD20i-BⅡ

LD30i-BⅡ

Case material

Engineering   plastic

Laser type

Fiber laser source

Laser power

≥20W

≥30W

≥20W

≥30W

Laser wavelength

1064nm

Maximum pulse energy

0.8mJ

Frequency range

1-600 kHz

Scanning method

High-precision   two-dimensional

Mark speed

≤7000mm/s

Control system

Highly- integrated motherboard, 7-inch touch screen, Linux   system

Cooling system

Air cooled

Type of marking line

Dot matrix and vector

Reflectorsize

Standard size8.5mm

Marking range

Standard50mm×50mm or 100mmx100mm

Positioning method

Red light positioning

Lines of marking

No limit within the   marking range

Marking speed

650 characters/sec   (the specific speed is related to product material and printing contents)

Fonts

Simplified Chinese,   Traditional Chinese, English, Korean, Russian, Arabic numerals and other   standard font libraries

File format

BMP/DXF/HPGL/JPEG/PLT

Code type

CODE39, CODE128, CODE126, EAN13, PDF417, 01CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE, etc

Power supply

220V

Battery 12000mAh

Power consumption

≤200W

≤250W

≤200W

≤250W

Battery run time

/

At22: 5.5 hours

Full charge time

/

4 hours

Weight

9kg

9.8kg

Over-voltage category

Working condition

0-40℃, 30 -85 RH (no condensing)
