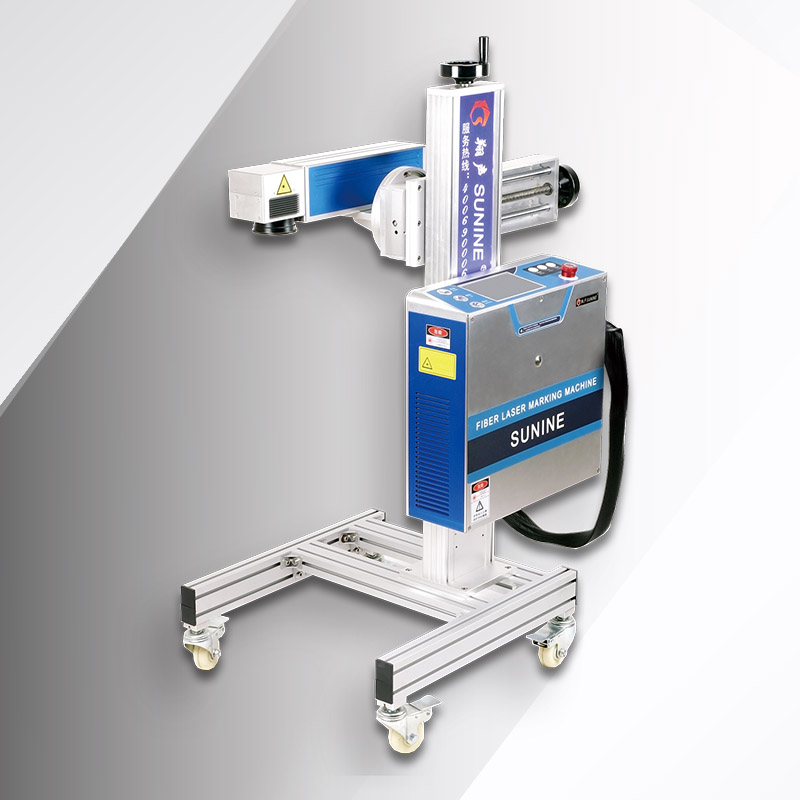

Sunine D2000C/ D3000C/ D5000C 20W 30W 50W Fiber Laser Marking Machine

QR code
Compact & Efficient
Virtually every common metal (precious metals, stainless, hardened steel, coppe andanodized aluminum, etc.) can be marked with 1064nm fiber laser marking system. ltcan also mark on non-metal materials such as aluminum foil, PVc, etc.
Type FIBER
Brand SUNINE
Model D2000C
Power 20W
Weight 31KG
Wavelength 1064nm
Operation System Linux
Laser Type fiber laser source
marking field Standard 110mmX110mm maximum optional: 600mmX600mm
Consult immediately
DetailSpecificationsApplications



Easy to use:

Sunine flexible and user-friendly laser controller simplified laser

marking \management for users. It allows customers

to create store and execute jobs locally, eliminating the need for

local computer control. For customers, this translates

flexibility for equipment location,increased productivity,

and lower PC costs.




Designed for high production efficiency:

.The Sunine D series fiber laser marking machine enhances productivity with a speed of

up to 18000m/s. Remote access, control, and monitoring capabilities further contribute to

productivity improvement. Sunine's self developed V5 marking software offers local

execution and streaming modes tailored to meet customer automation needs,

enabling the production of complex codes and dynamc messages even at high speeds.







Compact design:

The compact design, based on a cast aluminum structure,

and high-quality optical components guarantee strength

and low maintenance.Whether integrated in a production

lines orrobotic cell, the laser implementation is easy inall

mounting positions. The 360-degree rotatablelaser head

can be oriented to the part surface to significantly reduce

installation times and toolingcosts.




Along lifespan:

Fiber laser is developed for a lifetime of nearly100,000

hours in demanding environment swhere uptime is critical

They are the most reliablelow-noise lasers in the market. Alignment-free and maintenance-free.



















Model

D2000C

D3000C

D5000C

Power

20W

30W

5W

Case materials

Anodized Aluminum (Laser Head) & Stainless Steel (Control Unit)

Laser type

Fiber laser source

Laser wavelength

1064m

Marking method

High-precision 2D scanning

Marking speed

≤18000mm/s

Main control

Highly-integrated motherboard with 10 inch touch screen controller, V5 operation system

Cooling method

Air-cooled

Operation system

Linux

Type of marking

Both Dot martix & vector

Reflector size

Standard: 8.5mm

Marking filed

Standard: 110mmX110mm maximum optional:600mmX600mm

Positioning method

Red light positioning, auto focus

Number of lines

No limits within marking filed

Production line speed

0-300/min(varies according to materials and printing contents)

Language

English, Chinese, Spanish, Russian, Korean, Arabian etc.

File format

BMP/DXF/HPGLIJPEG/PLT

Bar code /QR code

CODE39/CODE128/code126/QRcode/Z-code/DM codeNisual code.etc

Power supply

220V/110V

Max cosumption

≤400W

600W

Weight


Laser head size

458mmX111mmX83mm

Control unit size

492mmX383mmX160mm

Interfaces

RS-232C/USB2 0/Ethernet.l/O

Casing protection level

IP54(laser head, IP65 is an option )

Type of overvoltage

II

Working condition

5 to 40℃; ≤85RH(No-condensing)





















Virtually every common metal (and a number of uncommon ones) can be marked with 1064nm laser marking system. Precious metals, stainless and hardened steel, copper and anodized aluminum all mark extremely well. It can also mark on non-metal materials such as aluminum foil, PVC, etc. It’s widely used in industries of food, pipes, wires & cables, pharmaceutical, etc.
